Water Meter วัดปริมาณการใช้น้ำ
>>
แบบกลไกเคลื่อนไหวไม่ใช้ไฟฟ้า
[2]
>>
2

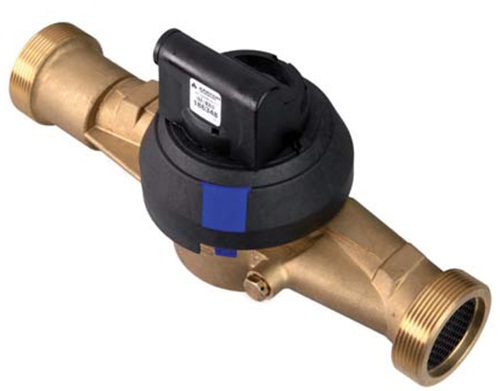

VANE-WHEEL SINGLE-JET DRY WATER METERS (DN25-40) รุ่น JS Master+
Basic technical data
| Type* |
Q3 [m3/h] |
DN [mm] |
Length [mm] |
Connection |
|---|---|---|---|---|

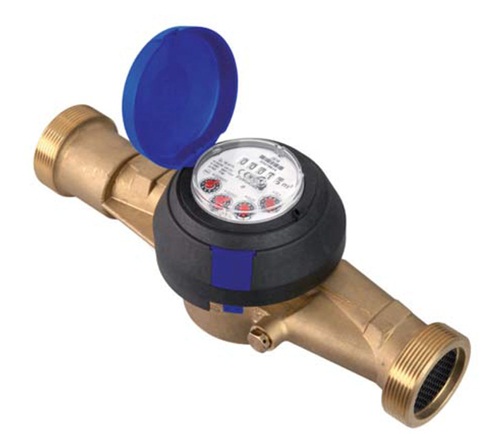

| WATER METERS for cold water | ||||
| JS 6,3 Master+ | 6,3 | 25 | 260 | G1¼ |
| JS 6,3-XX* Master+ | 6,3 | 25 | 260 | G1¼ |
| JS 6,3/165 Master+ | 6,3 | 25 | 165 | G1¼ |
| JS 6,3/165-XX* Master+ | 6,3 | 25 | 165 | G1¼ |
| JS 10-G1¼ Master+ | 10 | 25 | 260 | G1¼ |
| JS 10 Master+ | 10 | 32 | 260 | G1½ |
| JS 10-XX* Master+ | 10 | 32 | 260 | G1½ |
| JS 16 Master+ | 16 | 40 | 300 | G2 |
| JS 16-XX* Master+ | 16 | 40 | 300 | G2 |

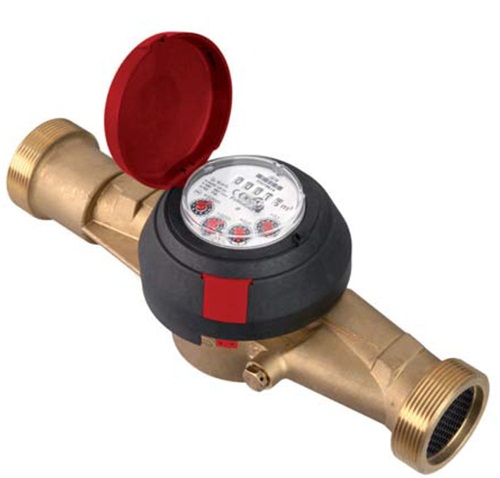

| WATER METERS for warm water | ||||
| JS130 6,3 Master+ | 6,3 | 25 | 260 | G1¼ |
| JS130 6,3-XX* Master+ | 6,3 | 25 | 260 | G1¼ |
| JS130 10-G1¼ Master+ | 10 | 32 | 260 | G1¼ |
| JS130 10-G1¼-XX* Master+ | 10 | 32 | 260 | G1¼ |
| JS130 10 Master+ | 10 | 32 | 260 | G1½ |
| JS130 10-XX* Master+ | 10 | 32 | 260 | G1½ |
| JS130 16 Master+ | 16 | 40 | 300 | G2 |
| JS130 16-XX* Master+ | 16 | 40 | 300 | G2 |
