2
>>
Water Meter วัดปริมาณการใช้น้ำ
>>
แบบกลไกเคลื่อนไหวไม่ใช้ไฟฟ้า
[2]
>>
3

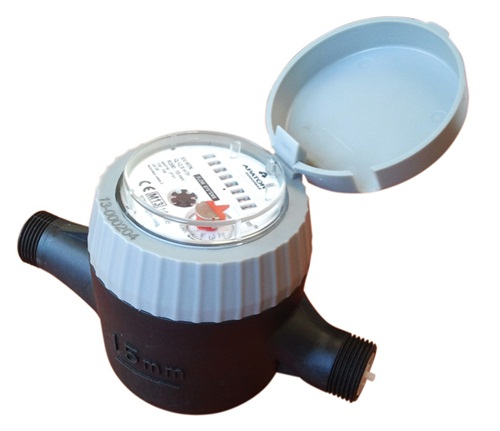

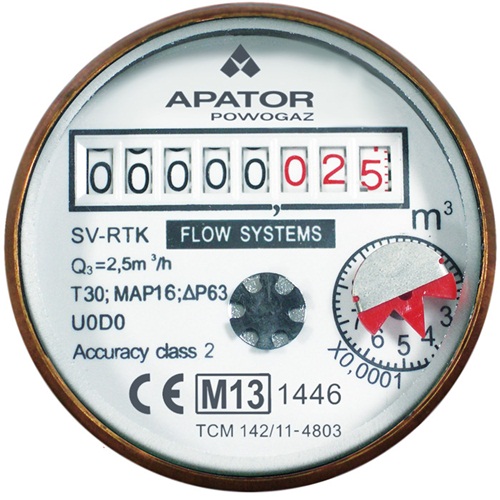

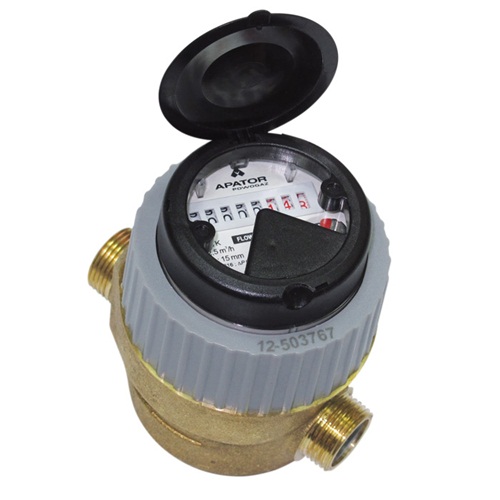

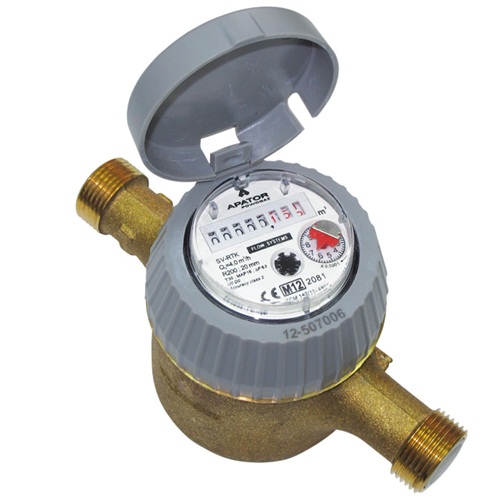

VOLUMETRIC DRY WATER METER FOR COLD WATER รุ่น SV-RTK
Basic technical data
| Parameter |
Q3 [m3/h] |
DN [mm] |
Length [mm] |
Connection | ||
|---|---|---|---|---|---|---|
| WATER METERS for cold water | ||||||
| SV-RTK 2,5-composite | 2,5 | 15 | 110 / 115 / 165 | G¾ | ||
| SV-RTK 2,5 | 2,5 | 15 / 20 | 110 / 115 / 165 | G¾ / G1 | ||
| SV-RTK 4,0 | 4,0 | 20 | 190 | G1 | ||
| SV-RTK 6,3 | 6,3 | 25 | 260 | G1¼ | ||
| SV-RTK 10 | 10 | 32 | 260 | G1½ | ||
| SV-RTK 16 | 16 | 40 | 300 | G2 | ||
