Water Meter วัดปริมาณการใช้น้ำ
>>
แบบกลไกเคลื่อนไหวไม่ใช้ไฟฟ้า
[2]
>>
5
_5d6153d_08e746f.jpg)

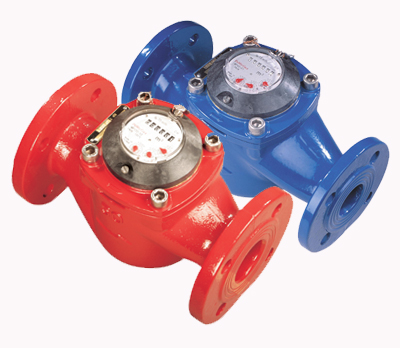

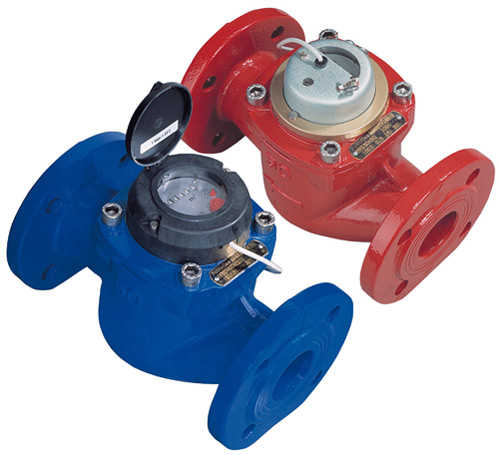

PROPELLER WATER METERS (WOLTMAN) WITH VERTICAL ROTOR AXIS รุ่น MP-01
_5d6153d_08e746f.jpg)
Basic technical data
| Type |
Q3 [m3/h] |
DN [mm] |
Length [mm] |
Connection |
|---|---|---|---|---|
| WATER METERS for cold water | ||||
| MP 40-01-XX* | 25 | 40 | 300 | flange*** |
| MP 50-01-XX* | 25 | 50 | 200 / 270 / 300** | flange*** |
| MP 65-01-XX* | 40 | 65 | 300 | flange*** |
| MP 80-01-XX* | 63 | 80 | 300 / 350** | flange*** |
| MP 100-01-XX* | 100 | 100 | 360 / 350** | flange*** |
| WATER METERS for hot water | ||||
| MP130 40-01-XX* | 15 | 40 | 300 | flange*** |
| MP130 50-01-XX* | 15 | 50 | 200 / 270 / 300** | flange*** |
| MP130 65-01-XX* | 25 | 65 | 300 | flange*** |
| MP130 80-01-XX* | 40 | 80 | 300 / 350** | flange*** |
| MP130 100-01-XX* | 60 | 100 | 360 / 350** | flange*** |
