Electromagnetic Flow meter FLOW33

TECHNICAL DATA



Power 24V DC±15 % power with polarity reversal protection
Input power 4.2 VA
Type of electronics through M12 (8-pin) connector
Design Compact
Maximum fluid temperature 90 °C (according to lining), for higher temperatures upon agreement with the manufacturer
Diameter nominal DN 10÷400 (other DN upon agreement with the manufacturer)
Lining material rubber (hard, soft, with potable water test certificate): DN 20÷DN 400 (Tmax 80 °C) PTFE: DN 15÷DN 250 (Tmax 150 °C) PFA: DN 300÷DN 400 (Tmax130 °C) Ceramics, PEAK, PVDF (upon agreement with the manufacturer)
Electrode material CrNi steel DIN 1.4571, Hastelloy C4, Titan, Tantalum, Platinum*
Frame All-welded

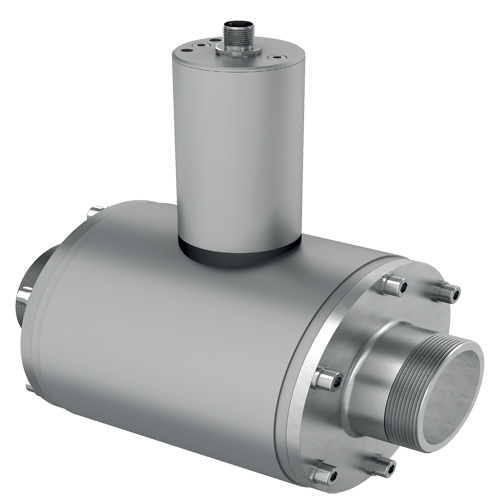

Sensor material flanged – stainless steel and structural steel with polyurethane coating sandwich, threaded, food grade – stainless steel

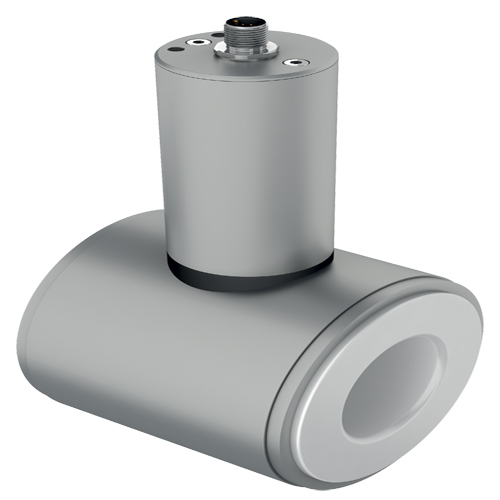

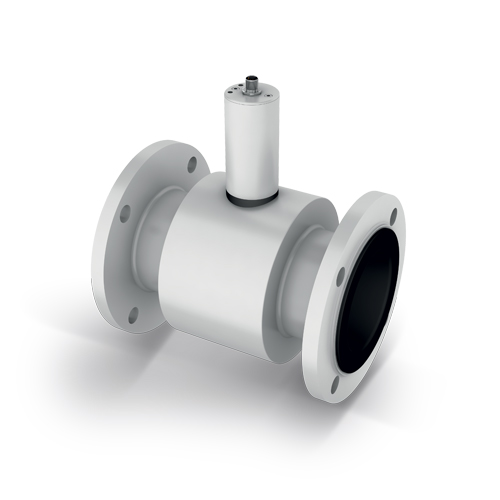

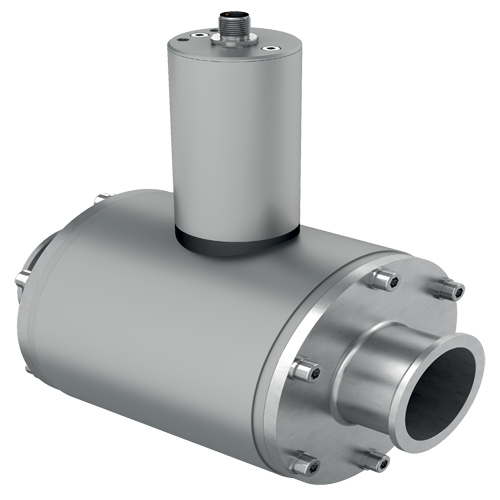

Process connections sandwich flanged DIN (EN1092) threaded (EN1092) food grade (DIN 11851 fitting, clamp)
Pressure PN10, PN16, PN25, PN40
Min.conductivity of the measured fluid 20 μS (at a lower conductivity, upon agreement with the manufacturer)
Flow meter measuring range (Qmin/Qmax) bi-directional for 0.2 to 12 m/s (1/60); 0.12 to 12 m/s (1/100); 0.06 to 12 m/s (1/200)
Flow meter accuracy Accuracy up to 0.5 %, repeatability up to 0.2 %
Pressure loss Negligible
Additional electrodes Grounding and detection electrodes for empty piping (DN 15÷DN 400)
Empty piping detection DN 15÷DN 400
Display unit 2× LED (meter‘s state is distinguished with 4 colours)
Setting is done via Bluetooth
Outputs (passive) pulse/flow switch (max. 1,6 kHz), 4÷20 mA
Max. ambient temperature 55 °C
Flow sensor degree of protection IP65, IP67, IP68
Electrode degree of protection IP67
* With PVDF lining only



Datasheet
